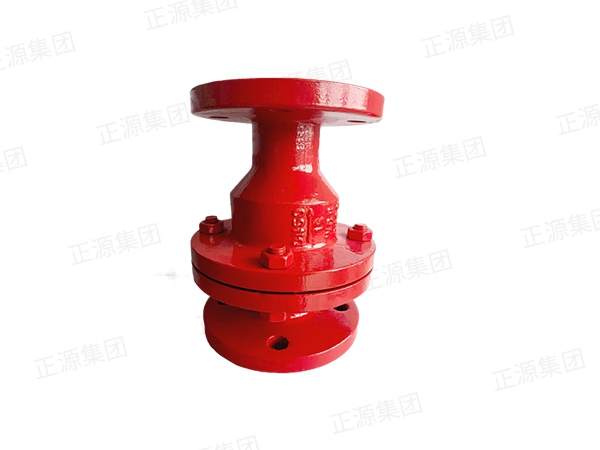

襯氟旋啟式止回閥H44
設計標準：HG/T3704 GB/T12235 GB/T12236
結構長度：GB/T12221 ASME B16. 10 HG/T3704
法蘭標準：JB/T79 GB/T9113 HG/T20592 ASME B16.5/47
連接方式：法蘭式
公稱壓力：PN 0.6 - 2.5MPa 150Lb - 300Lb
檢驗試驗：GB/T13927 API598
025-57255189
參數描述
| 公稱通徑 Nominal Diameter |
標準值 Standard value |
參考值 Reference value |
||||||||||
| DN (mm) |
NPS (inch) |

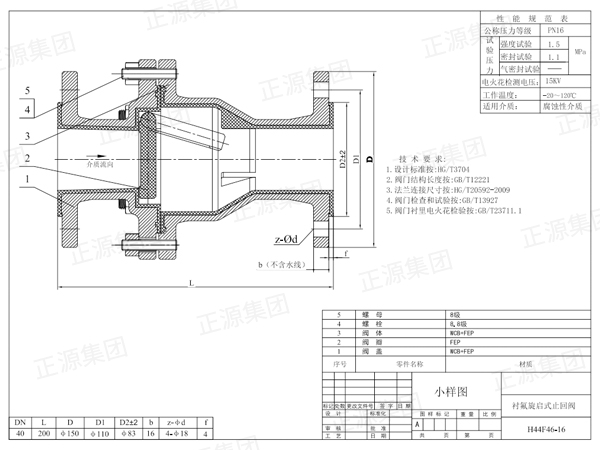

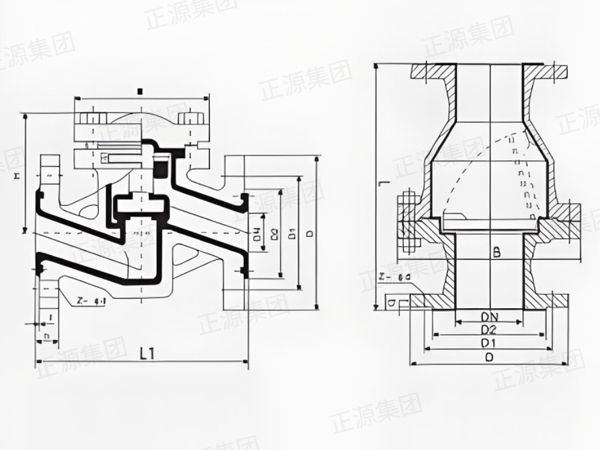

L1 | D | D1 | D2 | f | b | Z-∅d | D0 | H | W(Kg) | L |
| PN0.6(MPa) | ||||||||||||
| 15 | 1/2 | 130 | 80 | 55 | 40 | 2 | 12 | 4-∅11 | 105 | 55 | 3 | 130 |
| 20 | 3/4 | 150 | 90 | 65 | 50 | 2 | 14 | 4-∅11 | 115 | 58 | 3.6 | 150 |
| 25 | 1 | 160 | 100 | 75 | 60 | 2 | 14 | 4-∅11 | 128 | 60 | 4.37 | 160 |
| 32 | 1 1/4 | 180 | 120 | 90 | 70 | 2 | 14 | 4-∅14 | 145 | 75 | 6.33 | 180 |
| 40 | 1 1/2 | 200 | 130 | 100 | 80 | 2 | 14 | 4-∅14 | 160 | 82 | 8.75 | 200 |
| 50 | 2 | 230 | 140 | 110 | 90 | 2 | 14 | 4-∅14 | 178 | 95 | 11.4 | 230 |
| 65 | 2 1/2 | 290 | 160 | 130 | 110 | 2 | 14 | 4-∅14 | 205 | 105 | 17.42 | 290 |
| 80 | 3 | 310 | 190 | 150 | 128 | 2 | 16 | 4-∅18 | 230 | 120 | 22 | 310 |
| 100 | 4 | 350 | 210 | 170 | 148 | 2 | 16 | 4-∅18 | 255 | 135 | 28 | 350 |
| 125 | 5 | 400 | 240 | 200 | 178 | 2 | 18 | 8-∅18 | 305 | 158 | 49 | 400 |
| 150 | 6 | 480 | 265 | 225 | 202 | 2 | 18 | 8-∅18 | 345 | 180 | 63.4 | 480 |
| 200 | 8 | 600 | 320 | 280 | 258 | 2 | 20 | 8-∅18 | 415 | 215 | 71.65 | 495 |
| 250 | 10 | 730 | 375 | 335 | 312 | 2 | 22 | 12-∅18 | 490 | 240 | 75 | 622 |
| 300 | 12 | 850 | 440 | 395 | 365 | 2 | 22 | 12-∅22 | 540 | 265 | 92.5 | 698 |
| 350 | 14 | 490 | 445 | 415 | 2 | 22 | 12-∅22 | 585 | 300 | 107.5 | 787 | |
PN10襯氟止回閥
| 公稱通徑 Nominal Diameter |
標準值 Standard value |
參考值 Reference value |
||||||||||
| DN (mm) |
NPS (inch) |
L1 | D | D1 | D2 | f | b | Z-0d | D0 | H | W(Kg) | L |
| PN0.6(MPa) | ||||||||||||
| 15 | 1/2 | 130 | 95 | 65 | 45 | 2 | 16 | 4-014 | 105 | 55 | 3 | 130 |
| 20 | 3/4 | 150 | 105 | 75 | 58 | 2 | 18 | 4-014 | 115 | 58 | 3 | 150 |
| 25 | 1 | 160 | 115 | 85 | 68 | 2 | 18 | 4-014 | 128 | 60 | 4.37 | 160 |
| 32 | 1 1/4 | 180 | 140 | 100 | 78 | 2 | 18 | 4-018 | 145 | 75 | 6.33 | 180 |
| 40 | 11/2 | 200 | 150 | 110 | 88 | 2 | 18 | 4-018 | 160 | 82 | 8.75 | 200 |
| 50 | 2 | 230 | 165 | 125 | 102 | 2 | 18 | 4-018 | 178 | 95 | 11.4 | 230 |
| 65 | 21/2 | 290 | 185 | 145 | 122 | 2 | 18 | 8-018 | 205 | 105 | 17.42 | 290 |
| 80 | 3 | 310 | 200 | 160 | 138 | 2 | 20 | 8-018 | 230 | 120 | 22 | 310 |
| 100 | 4 | 350 | 220 | 180 | 158 | 2 | 20 | 8-018 | 255 | 135 | 28 | 350 |
| 125 | 5 | 400 | 250 | 210 | 188 | 2 | 22 | 8-018 | 305 | 158 | 49 | 400 |
| 150 | 6 | 480 | 285 | 240 | 212 | 2 | 22 | 8-022 | 345 | 180 | 63.4 | 480 |
| 200 | 8 | 600 | 340 | 295 | 268 | 2 | 24 | 8-022 | 415 | 215 | 71.65 | 495 |
| 250 | 10 | 730 | 395 | 350 | 320 | 2 | 26 | 12-022 | 490 | 240 | 82.5 | 622 |
| 300 | 12 | 850 | 445 | 400 | 370 | 2 | 26 | 12-022 | 540 | 265 | 95 | 698 |
| 350 | 14 | - | 505 | 460 | 430 | 2 | 26 | 16-022 | 585 | 300 | 112.5 | 787 |
| 注：上圖所列止回閥數值為化工部標準，如需其它標準請?jiān)谟嗀洉r(shí)注明。 | ||||||||||||
| 公稱通徑 Nominal Diameter |
標準值 Standard value |
參考值 Reference value |
||||||||||
| DN (mm) |
NPS (inch) |
L1 | D | D1 | D2 | f | b | Z-∅d | D0 | H | W(Kg) | L |
| PN0.6(MPa) | ||||||||||||
| 15 | 1/2 | 130 | 80 | 55 | 40 | 2 | 12 | 4-∅11 | 105 | 55 | 3 | 130 |
| 20 | 3/4 | 150 | 90 | 65 | 50 | 2 | 14 | 4-∅11 | 115 | 58 | 3.6 | 150 |
| 25 | 1 | 160 | 100 | 75 | 60 | 2 | 14 | 4-∅11 | 128 | 60 | 4.37 | 160 |
| 32 | 1 1/4 | 180 | 120 | 90 | 70 | 2 | 14 | 4-∅14 | 145 | 75 | 6.33 | 180 |
| 40 | 1 1/2 | 200 | 130 | 100 | 80 | 2 | 14 | 4-∅14 | 160 | 82 | 8.75 | 200 |
| 50 | 2 | 230 | 140 | 110 | 90 | 2 | 14 | 4-∅14 | 178 | 95 | 11.4 | 230 |
| 65 | 2 1/2 | 290 | 160 | 130 | 110 | 2 | 14 | 4-∅14 | 205 | 105 | 17.42 | 290 |
| 80 | 3 | 310 | 190 | 150 | 128 | 2 | 16 | 4-∅18 | 230 | 120 | 22 | 310 |
| 100 | 4 | 350 | 210 | 170 | 148 | 2 | 16 | 4-∅18 | 255 | 135 | 28 | 350 |
| 125 | 5 | 400 | 240 | 200 | 178 | 2 | 18 | 8-∅18 | 305 | 158 | 49 | 400 |
| 150 | 6 | 480 | 265 | 225 | 202 | 2 | 18 | 8-∅18 | 345 | 180 | 63.4 | 480 |
| 200 | 8 | 600 | 320 | 280 | 258 | 2 | 20 | 8-∅18 | 415 | 215 | 71.65 | 495 |
| 250 | 10 | 730 | 375 | 335 | 312 | 2 | 22 | 12-∅18 | 490 | 240 | 75 | 622 |
| 300 | 12 | 850 | 440 | 395 | 365 | 2 | 22 | 12-∅22 | 540 | 265 | 92.5 | 698 |
| 350 | 14 | 490 | 445 | 415 | 2 | 22 | 12-∅22 | 585 | 300 | 107.5 | 787 | |
PN10襯氟止回閥
| 公稱通徑 Nominal Diameter |
標準值 Standard value |
參考值 Reference value |
||||||||||
| DN (mm) |
NPS (inch) |
L1 | D | D1 | D2 | f | b | Z-0d | D0 | H | W(Kg) | L |
| PN0.6(MPa) | ||||||||||||
| 15 | 1/2 | 130 | 95 | 65 | 45 | 2 | 16 | 4-014 | 105 | 55 | 3 | 130 |
| 20 | 3/4 | 150 | 105 | 75 | 58 | 2 | 18 | 4-014 | 115 | 58 | 3 | 150 |
| 25 | 1 | 160 | 115 | 85 | 68 | 2 | 18 | 4-014 | 128 | 60 | 4.37 | 160 |
| 32 | 1 1/4 | 180 | 140 | 100 | 78 | 2 | 18 | 4-018 | 145 | 75 | 6.33 | 180 |
| 40 | 11/2 | 200 | 150 | 110 | 88 | 2 | 18 | 4-018 | 160 | 82 | 8.75 | 200 |
| 50 | 2 | 230 | 165 | 125 | 102 | 2 | 18 | 4-018 | 178 | 95 | 11.4 | 230 |
| 65 | 21/2 | 290 | 185 | 145 | 122 | 2 | 18 | 8-018 | 205 | 105 | 17.42 | 290 |
| 80 | 3 | 310 | 200 | 160 | 138 | 2 | 20 | 8-018 | 230 | 120 | 22 | 310 |
| 100 | 4 | 350 | 220 | 180 | 158 | 2 | 20 | 8-018 | 255 | 135 | 28 | 350 |
| 125 | 5 | 400 | 250 | 210 | 188 | 2 | 22 | 8-018 | 305 | 158 | 49 | 400 |
| 150 | 6 | 480 | 285 | 240 | 212 | 2 | 22 | 8-022 | 345 | 180 | 63.4 | 480 |
| 200 | 8 | 600 | 340 | 295 | 268 | 2 | 24 | 8-022 | 415 | 215 | 71.65 | 495 |
| 250 | 10 | 730 | 395 | 350 | 320 | 2 | 26 | 12-022 | 490 | 240 | 82.5 | 622 |
| 300 | 12 | 850 | 445 | 400 | 370 | 2 | 26 | 12-022 | 540 | 265 | 95 | 698 |
| 350 | 14 | - | 505 | 460 | 430 | 2 | 26 | 16-022 | 585 | 300 | 112.5 | 787 |
| 注：上圖所列止回閥數值為化工部標準，如需其它標準請?jiān)谟嗀洉r(shí)注明。 | ||||||||||||
